Features:
1.100% Brand New, High Quality
2. Comply with SAE J1772 standard
3. Beautiful appearance, with protective cover, support front installation
4. The pin head is designed with safety insulation to prevent accidental direct contact with human hands.Excellent protection performance
5. Type: European change American Adaptor
6. Use: EV charging

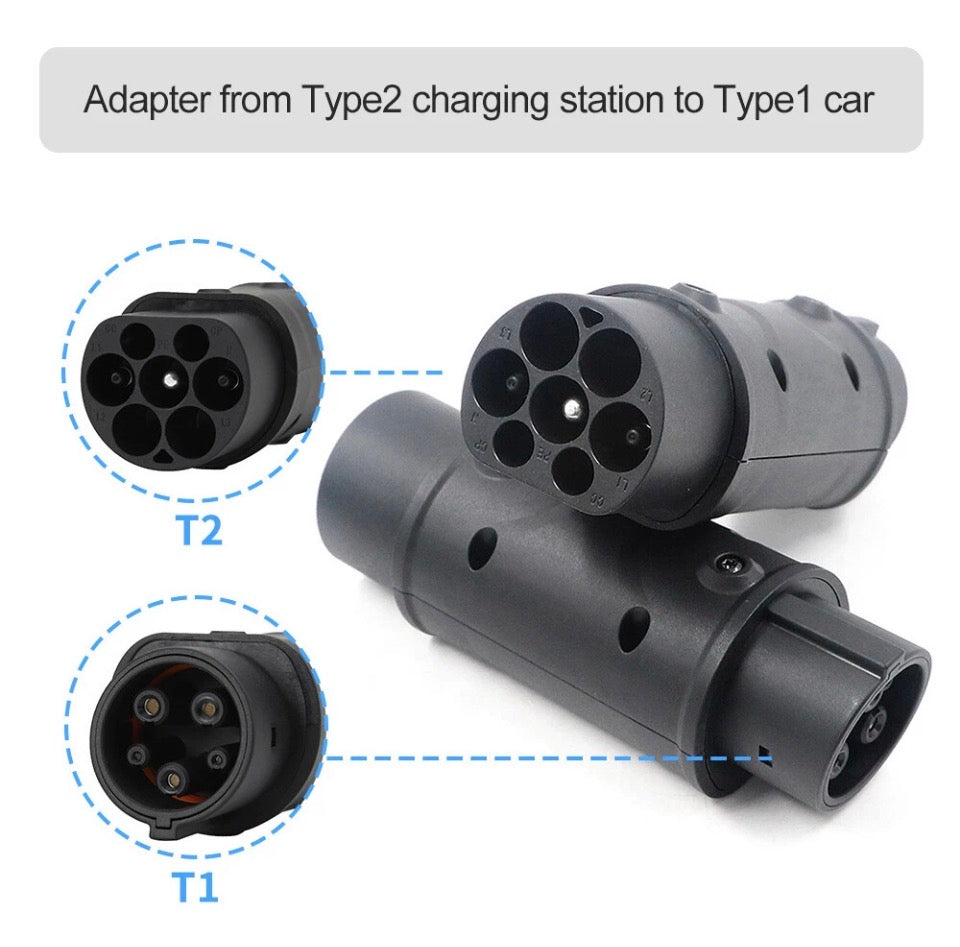

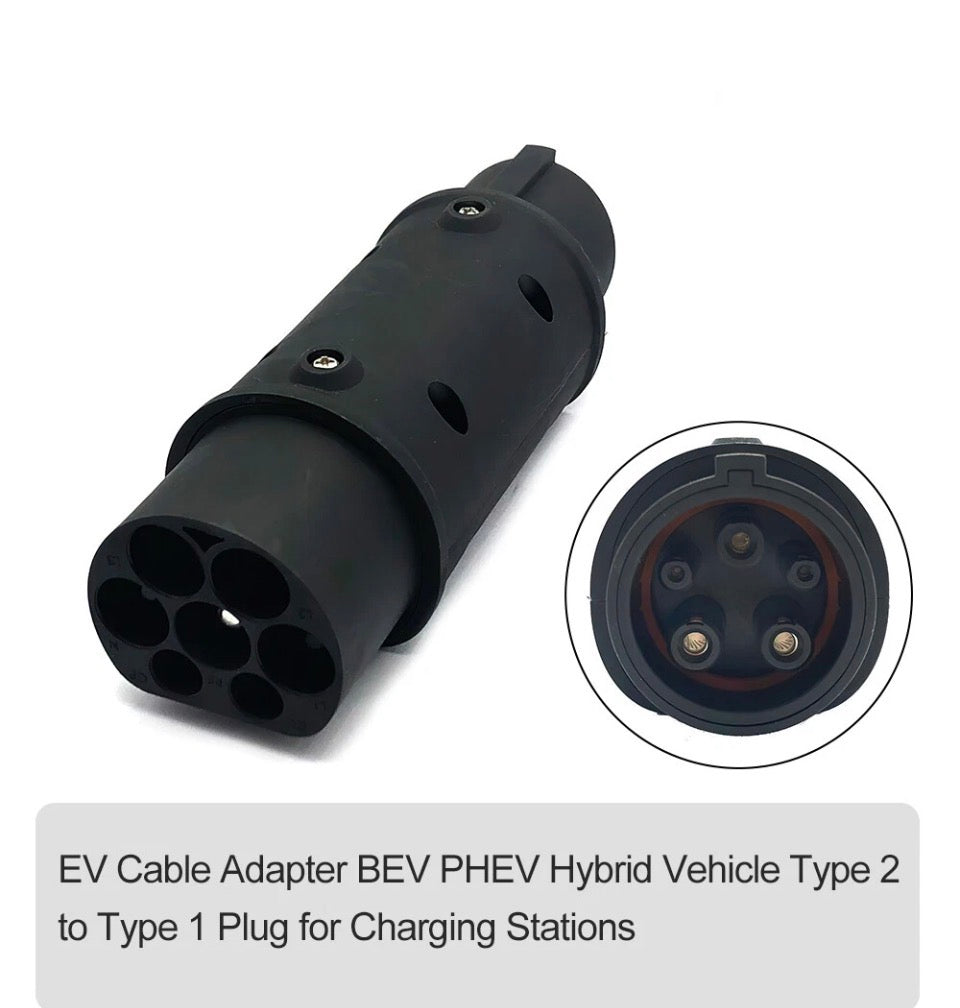

7.EV T2 to T1 Adapter: This EV 2 Type 1 Charging Adapter is suitable for Type 1 EV charging, 16A-32A (max 32A), 1 lb for easy portability.

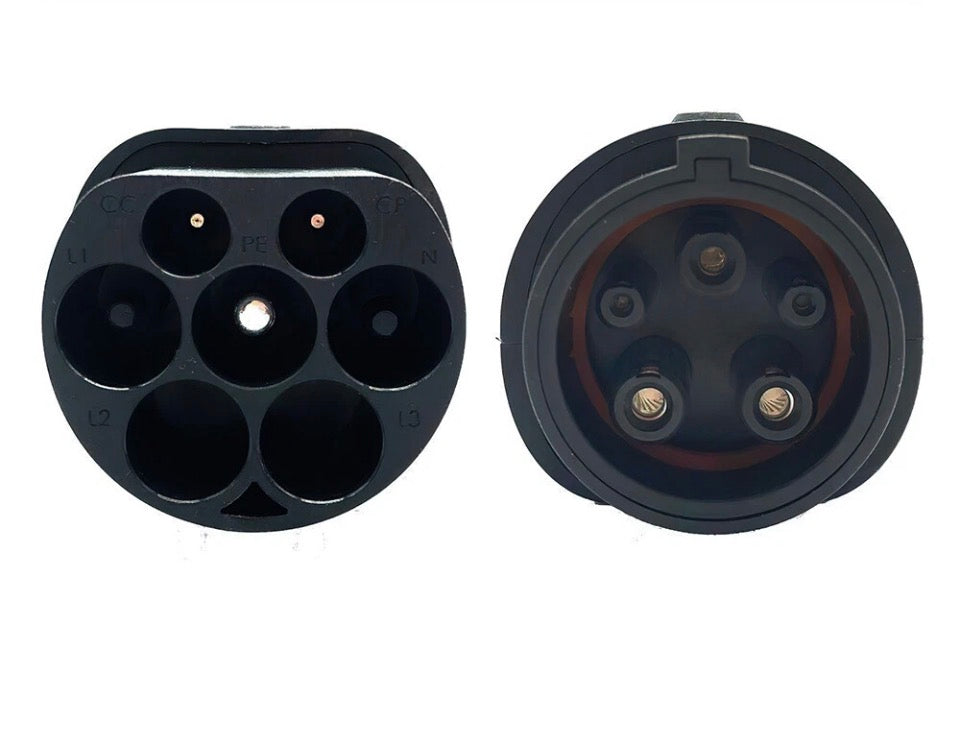

8.Type 2 EV Adapter has two sides: one side is IEC 62196-2 EV charging to connect to electric vehicle charging station, and the other side is J1772 plug that connects to type 1 EV.
Description:
1. Mechanical life: no-load plugging and unplugging Greater than 10000 times
2. Insertion force during coupling: Greater than 45N Less than 80N
Electrical performance:
1. Rated working current: 16A or 32A (Please note this adapter isn’t compatible with a 3 pin Granny Charger)
2. Working voltage: 110V~250V
3. Insulation resistance: Greater than 1000MΩ (DC500V)
4. Terminal temperature rise: Less than 50K
5. Withstand voltage: 2000V
6. Contact resistance: 0.5mΩ Max
Ambient temperature:
1. Working environment temperature: -30℃~+50℃
We recommend to use the following steps:
1.Plug in the Type 2 end of the adapter to the charging cable
2.Plug in the Type 1 end of the adapter to the car's charging socket
3.After the adapter has clicked in place you are for the chargex
Don't forget to activate the charging station
When you finish with the charge, disconnect the vehicle side first and then the charging station side. Remove the adapter from the charging station when not in use.
Material:thermoplastic
Colour:Black
